Kito

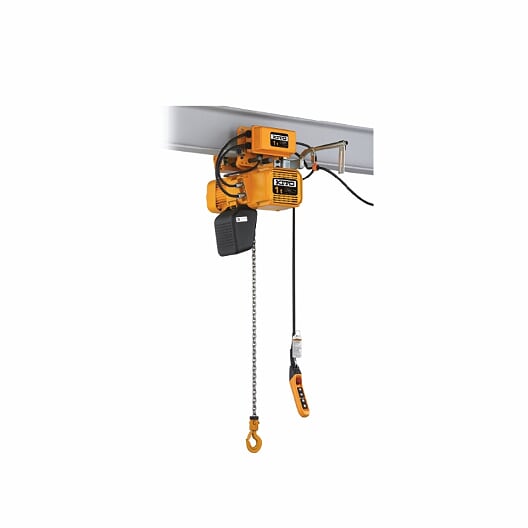

Kito ER2M005S-S Electric Chain Hoist Motorized Trolley Type ,500Kg, 3Phase 380V,68 Kg, Made in Japan

Kito
Electric Chain Hoist
  • Smooth & Ergonomic Operation
  • Reliable Safety
  • Enhanced Durability
  • Environmentally Friendly
  • Easier Maintenance
  • Availability: Out of Stock
  • SKU: ER2M005S-S
  • 24 Months Warranty

Features

  • Ten meters of power supply cable as standard accompanies.
  • Optional length of lift, push button cord and power supply cable besides standard is available on your request.
  • Extending the load chain is prohibited with additional links.
  • Steel chain containers are available as option as shown in Section of “Chain Containers” if your lift is more than capacity of the standard container volume.
  • Single Lifting.
  • Dual Traversing is also available.
Capacity(t)
500kg
Hoist Body
C
Standard Lift (m)
3
Push Button Cord L (m)
2.5
Lifting Motor
Output (kW)
0.9
Lifting Motor
Rating (%ED)
60
Lifting Speed (m/min)
50Hz
7.3
60Hz
8.8
Load Chain
Diameter (mm) x Chain Falls
6. x 1
Classification ISO/FEM/ASME
M5/2m/H4
Traversing Motor
Output (kW)
0.4
Traversing Motor
Rating (%ED)
40
Traversing Speed (m/min)
50Hz
20 (10)
60Hz
24 (12)
Flange Width B (mm)
Standard
58 to 153
Flange Width B (mm)
Option W30 (305mm)
154 to 305
Min.Radius Curve (mm)
800
Test Load (t)
625kg
Net Weight (kg)
68
Additional Weight per 1m Lift (kg)
0.81
Weight
68
Khusheim Code
40-01-072
Khusheim ID
2180520
