Kito

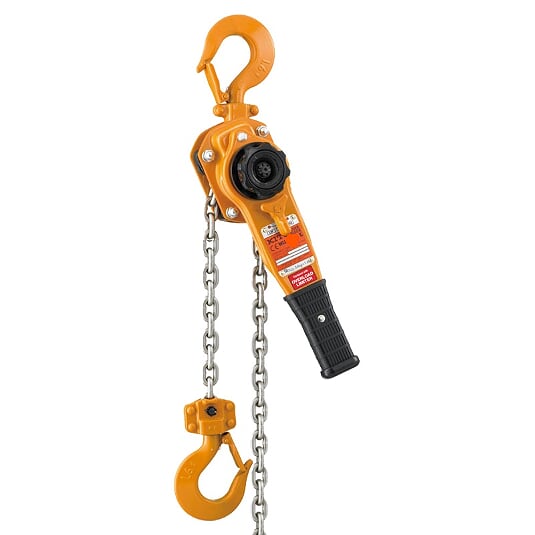

Kito LB5-008 Lever Hoist ,0.8 Ton, Chain Length 1.5 Meter, 6 Kg, Made In Japan

Kito
Lever Hoist
  • Totally encapsulated and dust-tight brake
  • Free chain system gives fast adjustment of chain length
  • Nickel plated load chain
  • Light and compact
  • Rugged lever handle
  • Availability: 6 In Stock
  • SKU: LB5-008
  • 24 Months Warranty
860 (vat inclusive)
Tabby Installment Plan Split in 4 payments of 215 monthly without fees

Features

  • LEVER HOIST from KITO, 0.8TON X 1.5MTR.
  • Smaller and lighter easy to carry and store, much easier to use, even in a narrow working spaces.
  • Nickel-plated chain, produces world-class performance, toughness and resistance to corrosion & wear.
  • High-strength frame High grade alloy steel with solid construction.
  • Lever Handle with A new shape and thicker material creates a very strong lever handle.
  • Hook Latch with safety mechanism with Thicker material makes the latch stronger, and engagement with the tip of the hook creates secure closure.
  • Hooks are forged from high strength alloy steel allowing the larger capacities.
  • 21/2 through 9 ton – to use hooks that are smaller and lighter.
  • Cap Nuts fasten the gear case and brake cover protecting the screw from damage and making maintenance easier.
Rated load (W.L.L.)
0.8
Standard lift (m)
1.5
Hand-pull to lift full load (n) (kg)
284 (29)
Load chain diameter x chain fall (mm)
5.6x1
Test load (kg)
1200
Mass (Net weight) * (kg)
6
Shipping weight (Approx.)(kg)
6.3
Weight for additional one meter of lift (kg)
0.7
Dimensions (mm)
A
144
Dimensions (mm)
B
119
Dimensions (mm)
C
280
Dimensions (mm)
D
245
Dimensions (mm)
E
97
Dimensions (mm)
G
23.5
Dimensions (mm)
S
35.5
Dimensions (mm)
T
14
Weight
6.3
Khusheim Code
40-05-007
Khusheim ID
2195051
