Cleveland C54248 Straight Flute Tap, M4 x 0.7 Thread Size, 19.05 mm Thread Length, 54.10 mm Overall Length, Bottom

Cleveland
Straight Flute Tap
  • Availability: 10+ In Stock
  • SKU: C54248
34 24
(vat inclusive)
Save 30%
Tabby Installment Plan Split in 4 payments of 6 monthly without fees
DescriptionSpecificationReviews

Features

  • The bright finish on these taps provides a smooth, polished surface.
Hand Tools
-Plumbing
-Hammer
-Threading
-Threading bit
-Pipe Threading Accessories
-Chipping Hammers
Thread Size
M4x0.7
Thread Standard
Metric
Tap Chamfer
Bottom
Tap Material
High Speed Steel
Tap Finish
Bright (Uncoated)
Thread Length
19.05 mm
Overall Length
54.10 mm
75% Thread Drill Size
3.30 mm
Thread Limit
D4
Class of Fit
6H
Thread Direction
Right Hand
Number of Flutes
4
Tap Length Standard
USCTI
Tap Shank Standard
USCTI
55% Thread Drill Size
3.50 mm
65% Thread Drill Size
3.40 mm
Extended Neck
Yes
Measurement System
Metric
Primary Material Application
All Materials
Primary Material Application ISO Code
H, K, M, N, O, P, S
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Secondary Material Application ISO Code
K, M, N, P
Series
1003
Shank Dia.
4.27 mm
Shank Length
34.93 mm
Shank Type - Machining
Straight
Spiral Direction
Neutral
Square Size
3.33 mm
Standards
USCTI TABLE 302A
Tap Grouping
Individual
Tap Style
Straight Flute (Hand)
Thread Limit
Class of Fit
D4
6H
Thread Pitch
0.70mm
Weight
0.006
Khusheim Code
1000446442
Khusheim ID
2384973

No reviews yet

You must login or register to post a review

Related Accessories


You may like also

Straight Flute Tap, #10-32 Thread Size, 7/8 inch Thread Length, 2 3/8 inch Overall Length Straight Flute Tap Westward 2LWH5Express
Westward Straight Flute Tap, #10-32 Thread Size, 7/8 inch Thread Length, 2 3/8 inch Overall Length
2LWH5

Straight Flute Tap

Availability In Stock
-30%
9 13
Straight Flute Tap, 3/8 inch-16Thread Size, 1 1/4 inch Thread Length, 2 15/16 inch Overall Length Straight Flute Tap Westward 132210076
Westward Straight Flute Tap, 3/8 inch-16Thread Size, 1 1/4 inch Thread Length, 2 15/16 inch Overall Length
132210076

Straight Flute Tap

Availability In Stock
-30%
10 14

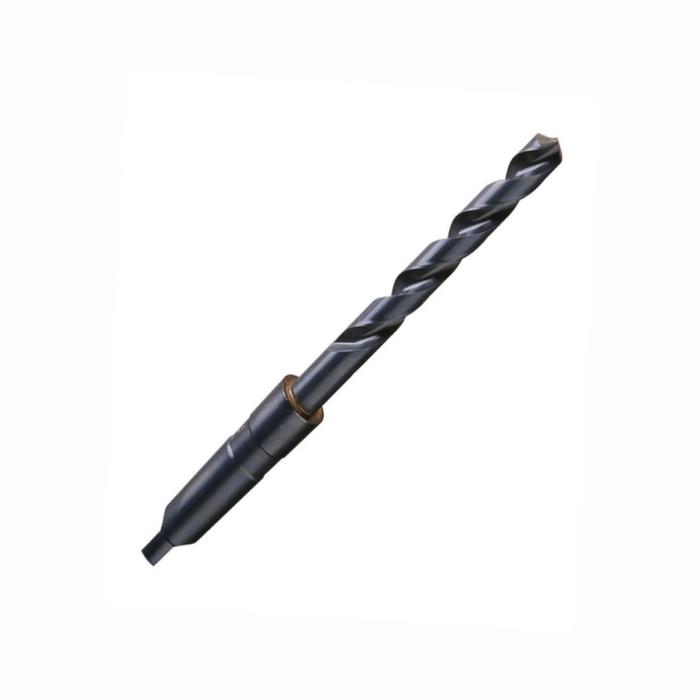

Taper Shank Drill Bit, Overall Length 14.875 in Taper Shank Drill Cleveland C12304
Cleveland Taper Shank Drill Bit, Overall Length 14.875 in
C12304

Taper Shank Drill

Availability In Stock
-30%
544 777

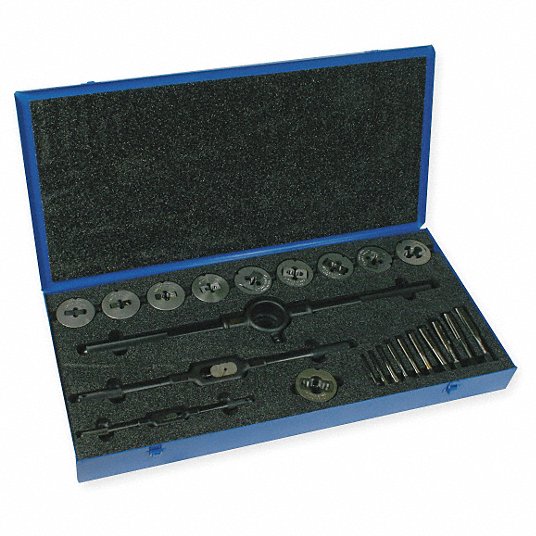

Tap and Die Set: 13 Pieces, 1/4 Tap and Die Se Cleveland C00610
