Starrett

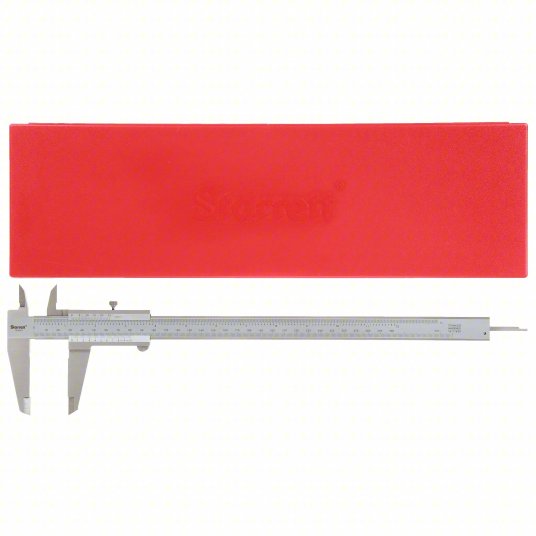

Starrett 125MEA-12/300 4-Way Vernier Caliper, 0 inch to 12 inch/0 mm to 300 mm Range, 1 1/2 inch Jaw Depth, Slide, Standard Jaw

Starrett
Vernier Caliper
  • Availability: 1 In Stock
  • SKU: 125MEA-12/300
1,241 869
(vat inclusive)
Save 30%
Tabby Installment Plan Split in 4 payments of 218 monthly without fees

STARRETT Vernier Caliper Features 2ZUF3:

  • Vernier calipers have a fixed jaw paired with a sliding jaw that moves along a graduated scale to take inside and outside measurements.
  • The jaws are used to contact the opposite sides of an object, workpiece, or feature.
  • Operators read the main and vernier scales and add the values together to determine the reading.
  • These calipers require expertise to read correctly.
Range
0 inch to 12 inch; 0 mm to 300 mm
Graduations
0 inch/0 mm (Lower Scale); 12 inch/300 mm (Upper Scale)
Accuracy
+/-0.001 inch (0-4 inch), +/-0.0015 inch (4+ inch)
Caliper Material
Stainless Steel
Dimension Type
Inch/Metric
Graduations - Lower Scale
0 inch/0 mm
Graduations - Upper Scale
12 inch/300 mm
Jaw Actuation Type
Slide
Jaw Depth
1-1/2 inch
Maximum Measurement - Decimal Inch
12 inch
Maximum Measurement - Fractional Inch
12 inch
Maximum Measurement - mm
300 mm
Measurements
4-Way
Measures Depth
Yes
Measures Inside Dimension
Yes
Measures Outside Dimension
Yes
Measures Step
Yes
Minimum Measurement - Decimal Inch
0 inch
Minimum Measurement - Fractional Inch
0 inch
Minimum Measurement - mm
0 mm
Operation Type
Mechanical
Case Type
Plastic
Finish
Satin Chrome
Jaw Shape
Standard Jaw
Long Form Calibration Certificate
No
With Locking Nut
Yes
Weight
0.929
Khusheim Code
BD-2ZUF3
Khusheim ID
989649
