Ideal

Ideal 45-777 Multi-Tool Wire Stripper, 16 AWG to 6 AWG, For RG-59 Cable Designation, 8 1/4 inch Length

Multi-Tool Wire Stripper
  • Seven Function Tool With Hardened Steel Knife Cutters

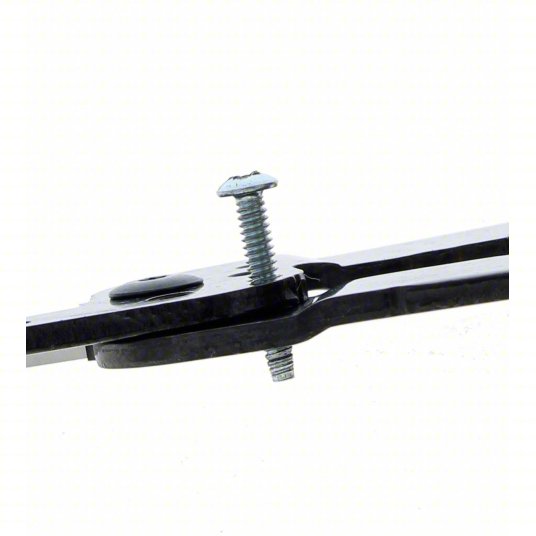

  • Cuts Unhardened Bolts And Screws
  • Loops Wire From Either The Front Or Back Of Tool
  • Tapered Nose For Conduit Reaming And De-Burring
  • Capacity 8 → 18AWG
  • Availability: 10+ In Stock
  • SKU: 45-777
180 126
(vat inclusive)
Save 30%
Tabby Installment Plan Split in 4 payments of 32 monthly without fees

IDEAL Wire Stripper 45-777 Features:

  • Also known as wire stripper pliers, they hold wire within a slot, squeeze their jaws to press through the insulation, and slide the insulation off the end of the wire.
  • Cable Stripping Tool: designed to strip the end portion of an electric wire, this wire stripper is a portable handheld tool used by electricians for removing the protective coating of an electric wire to replace or repair it

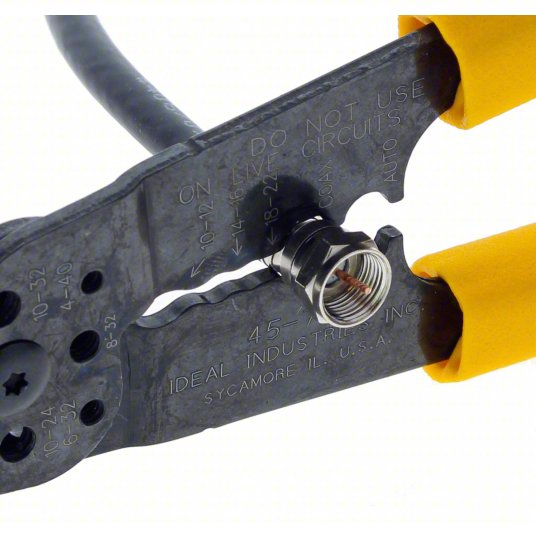

  • Precise Cutting: the electrician wire stripping tool has a flat blade that clips the outer sheathing to remove excess wire jacket. It cuts unhardened wire, bolts, screws, and reforms threads, and crimps bare and insulated terminals, RG-59 coax connectors, and 7 to 8 mm auto ignition connectors.
  • Ergonomic Grip: the electrical cable stripper has a slip-resistant molded elastomer handle that ensures a non-slip grip for clean and quick-rip, cut or strip of the outer jacket of the stranded, solid, NM wire, and U.F. wire.
  • Added Features: the cable stripper has looping holes that provide the perfect loop for screw-on devices. It features precision-ground stripping blades, cushioned grips, and a plier nose.
  • Product Specifications: the IDEAL 7-in-1 wire cutter perfectly fits in the palm and does not weigh down your tool belt. Versatile, seven-function tool strips 8-16 AWG solid wire, 10-18 AWG stranded wire.

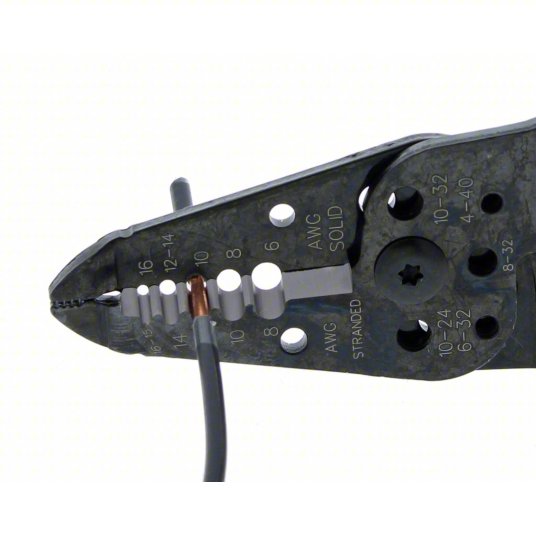

tripping Capacity - Solid Wire
6 AWG, 8 AWG, 10 AWG, 12 AWG, 14 AWG, 16 AWG
Stripping Capacity- Stranded Wire
8 AWG, 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG
For Cable Designation
RG-59
Overall Length
8-1/4 inch
Grip Style
Standard Cushion
Insulated
No
For Wire/Cable TypeCoax Cable; Non-Metallic Sheathed Cable; Solid Wire; Stranded Wire
Cutting Capacities
32 to 4 AWG
Tool Functions
Crimp, Cut, Screw Shear
Handle Style
Standard
Adjustment Mechanism
Manual
Application
Stripping
Connectors
CrimpedInsulated Connectors; Terminals
Features
Cuts Stranded, Solid, Nm Wire and U.F. Wire to 8 Awg
Gauges Crimped
7 to 8 mm (Auto Ignition Connector)
Maximum Stripping Capacity - Solid Wire
6 AWG
Maximum Stripping Capacity - Stranded Wire
8 AWG
Maximum Wire/Cable Diameter
6 ga
Minimum Stripping Capacity - Solid Wire
16 AWG
Minimum Stripping Capacity - Stranded Wire
18 AWG
Minimum Wire/Cable Diameter
18 ga
Tether Ready
No
Weight
0.19
Khusheim Code
BD-5LJ23
Khusheim ID
1003729
