Zortrax

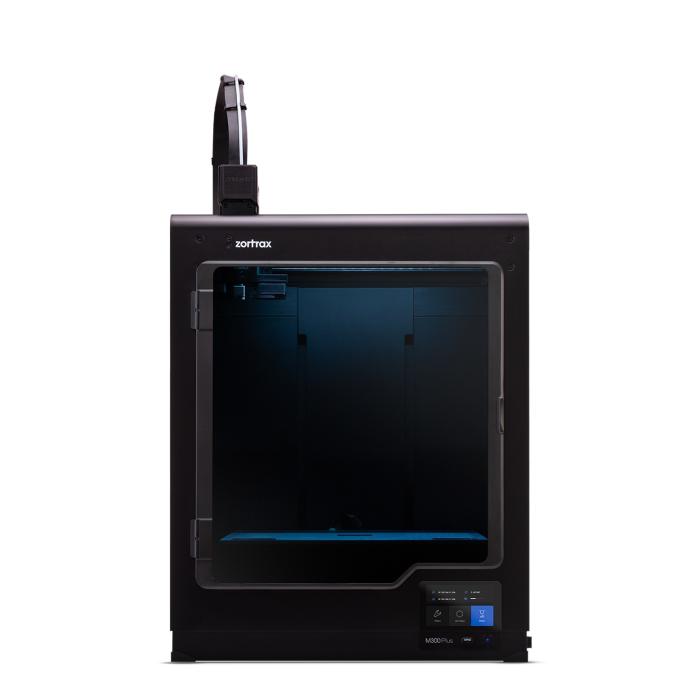

Zortrax M98-02-70004 M300Plus

Zortrax
3D Printers
  • Availability: Out of Stock
  • SKU: M98-02-70004
A desktop 3D printer with one of the largest workspaces among Plug & Play devices able to 3D print big models in one go - Large workspace 300 x 300 x 300 mm is enough to print large models at once - Wi-Fi and Ethernet connection can be connected in large networks with Wi-Fi or Ethernet. Models can also be loaded directly from a USB storage device to each of the printers. Keep an eye on the 3D printing process with a camera built into the printing chamber - Filament sensor, automatically enters pause mode when there is no more filament left - Improved extruder and nozzle - No assembly is required before starting work. You can select available options and view 3D models directly on the intuitive built-in touchscreen. Automatic firmware updates via WLAN bring all future functions directly to the printer. - Key features of Z-SUITE 2, is a slicing application that also functions as a wireless command centre for intelligent, with Wi-Fi connectivity. - Supported filaments, The improved extruder also allows you to print 3D with more experimental and flexible filaments.
Build volume
300 x 300 x 300 mm (11.8 x 11.8 x 11.8 in)
Material container
Spool
Material diameter
1,75 mm (0.069 in)
Nozzle diameter
0,4 mm (0.016 in)
Support
Mechanically removed – printed with the same material as the model
Extruder
Single (upgraded for more demanding materials)
Extruder cooling system
Radial fan cooling the extruder block
Hotend
Redesigned (v3), new geometry of the nozzle
Platform
Perforated, heated
Material endstop
Mechanical
Connectivity
WI-FI, USB, Ethernet
Operating system
Android
Processor
Quad Core
Touchscreen
4” IPS 800 x 480
Camera
Yes
Available materials
Z-ULTRAT, Z-HIPS, Z-GLASS, Z-PETG, Z-ESD, Z-ASA Pro, Z-PLA Pro
External materials
Applicable
Weight
55 kg
In the box
3D printer, Hotend V3, Side Covers, Z-SUITE, Starter Kit, 2 spools of material, Spoolholder
Printing
Technology
LPD (Layer Plastic Deposition) – depositing melted material layer by layer onto the build platform
Layer resolution
90-290 microns
Minimal wall thickness
400 microns
Platform levelling Automatic measurement of platform points’ height
Maximum platform temperature
105 ˚C (221 °F)
Maximum printing temperature (extruder)
290 ˚C (554 °F)
Ambient operation temperature
20 – 30 ˚C (68 – 86 °F)
Storage temperature
0 – 35 ˚C (32 – 95 ˚F)
AC input
110 V ~ 5.9 A 50/60 Hz 240 V ~ 2.5A 50/60 Hz
Maximum power consumption
360 W
Weight
55
Khusheim Code
3D-01-0004
Khusheim ID
2432458
