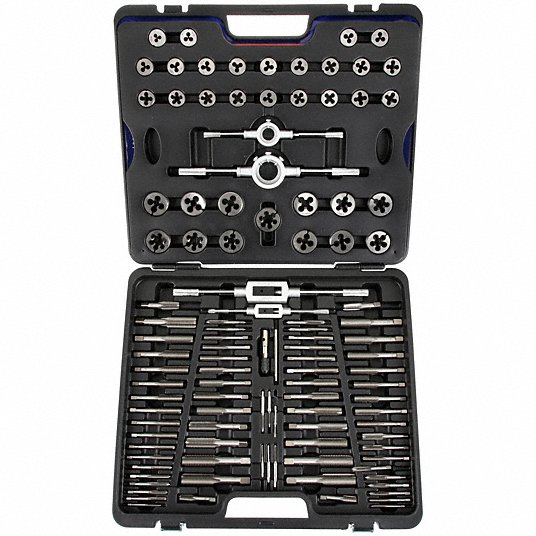

Westward 1PZ54 Tap and Die Set, 110 Pieces, #4-40 Min, Tap Thread Size, M18 Max, Tap Thread Size

#10-24, #10-32, #12-24, #4-40, #6-32, #8-32, 1/2 in-13, 1/2 in-20, 1/4 in-18, 1/4 in-20, 1/4 in-24, 1/4 in-28, 1/4 in-32, 1/8 in-27, 3/4 in-10, 3/4 in-16, 3/8 in-16, 3/8 in-24, 5/16 in-18, 5/16 in-24, 5/8 in-11, 5/8 in-18, 7/16 in-14, 7/16 in-20, 9/16 in-12, 9/16 in-18, M10x1.0, M10x1.5, M11x1.5, M12x1.5, M12x1.75, M14x1.25, M18x1.5, M6x1.0, M8x1.25

Bright (Uncoated)

0.14 in, 0.18 in, 0.20 in, 0.22 in, 0.24 in, 0.28 in, 0.31 in, 0.35 in, 0.41 in, 0.43 in, 0.47 in, 0.55 in

2A

Non-Coolant Through

Metric, NPT

No

No

No

35

Carbon Steel

Bright (Uncoated)

Round

Adjustable

#10-24, #10-32, #12-24, #4-40, #6-32, #8-32, 1/2"-13, 1/2"-20, 1/4"-18NPT, 1/4"-20, 1/4"-24, 1/4"-28, 1/4"-32, 1/8"-27 NPT, 3/4"-10, 3/4"-16, 3/8"-16, 3/8"-24, 5/16"-18, 5/16"-24, 5/8"-11, 5/8"-18, 7/16"-14, 7/16"-20, 9/16"-12, 9/16"-18, M10x1.0, M10x1.5, M11x1.5, M12x1.5, M12x1.75, M14x1.25, M18x1.5, M6x1.0, M8x1.25

Plastic Case

Ferrous Metal

H

ANSI B1.1

Carbon Steel

3/4"-16

M18

Fractional Inch

#4-40

Right Hand

GCr15

#4 to 3/4 in, M6 to M18

ANSI-B94-1987 Standards, American Metal Cutting Institute Standards for Cut Thread Tolerance

Plug, Taper

Carbon Steel

Right Hand

Metric, NPT, UNC, UNF

BD-1PZ54

983930
