ET300i welding machines TIG-HF & MMA 300 Amp 1ph 3ph 220-400V

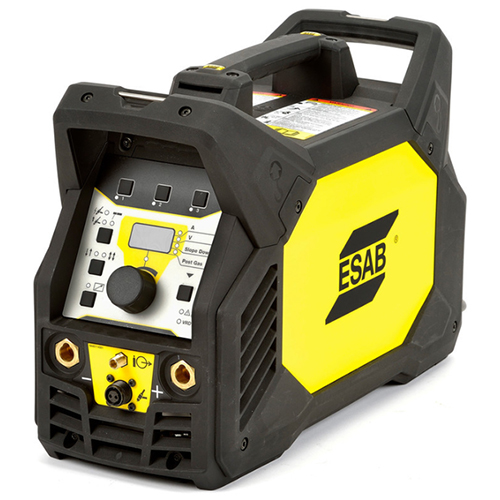

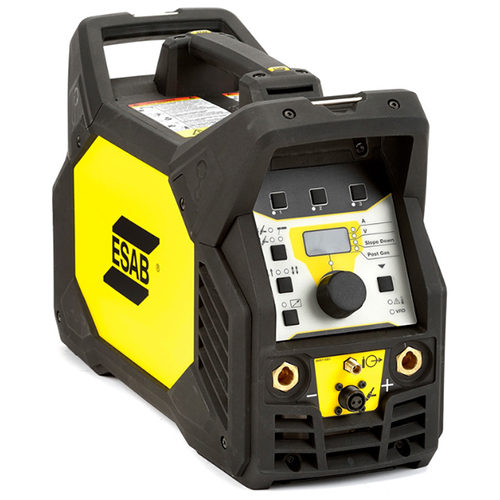

Renegade ET 300i / ET 300iP
Portability is paramount. But so is power.

The Renegade TIG are inverter-based High-frequency TIG (HF) and MMA/Stick machines with extreme power to weight ratio. The compact format makes it easy to carry and bring to any job site. Combined with a high duty cycle and the ability to run the machine on long mains and welding cable makes this a superior welding machine for both on-and off-site applications.
The machine has an automatic input voltage sensor and can operate with any input voltage between 208V and 528V in 3-phase and 230V in a single phase.

Features

Extreme power to weight ratio in a most compact format.
Rugged composite casing for durability in the roughest environments.
Designed for extreme conditions including up to +55°C ambient temperature.
Widest input voltage tolerance and ability to run on single and three phases with cables up to 100 meters.

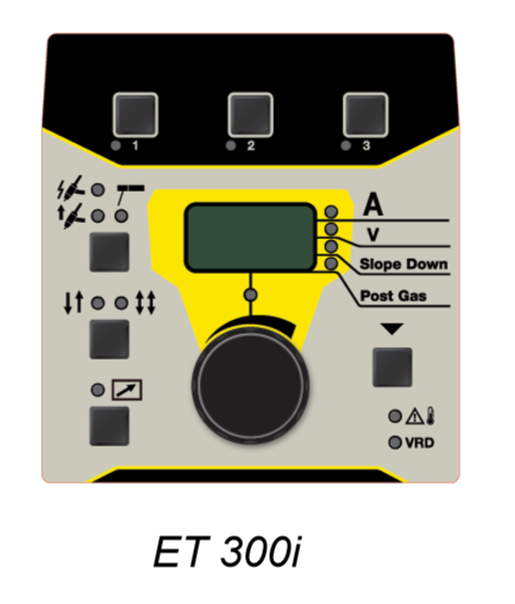

Easy to read and quick to set panel increasing the accuracy and reducing the downtime.
Available as nonpulsed and as pulsed for thin sheet metal applications.
Modular system with tool-less connection to water cooler and trolley

Industry

Ship and Offshore Yards
Civil Construction
Pipe Construction
Repair and Maintenance
Heavy Fabrication
Industrial and General Fabrication
Mining
Steel Erectors

Welding Solutions

-MMA

-Tig

Primary Voltage 1 ph

230 VAC +/- 10%, 50/60 Hz

Primary Voltage 3 ph

230-480 VAC +/- 10%, 50/60 Hz

Fuse Slow

16 A at 400 V

Energy Save Mode

88 W at 400 V

Maximum Output

300 A

Power Factor at Max Current

0.96

Efficiency at Max Current TIG

MMA

88 %

84 %

Open Circuit Voltage with

without VRD

33 V

48 V

TIG Welding Output 40% Duty Cycle

300 A

22.0 V

TIG Welding Output 60% Duty Cycle

250 A

20.0 V

TIG Welding Output 100% Duty Cycle

200 A

18.0 V

MMA Welding Output 40% Duty Cycle

300 A

32.0 V

MMA Welding Output 60% Duty Cycle

250 A

30.0 V

MMA Welding Output 100% Duty Cycle

200 A

28.0 V

Current Range

5 – 300 A (TIG and MMA)

Approvals

Protection Class

IP23

Mains Cable

3 m, 4×2,5 mm2 (4×4 mm2 with 230 V)

Supply Plug CEE

16 A

Dimensions, Lx W x H

460 x 200 x 320 mm

Weight without

with Cooler 1

6.9 kg

26.9 kg

Weight

16.9

Khusheim Code

90-50-005

Khusheim ID

2627916
