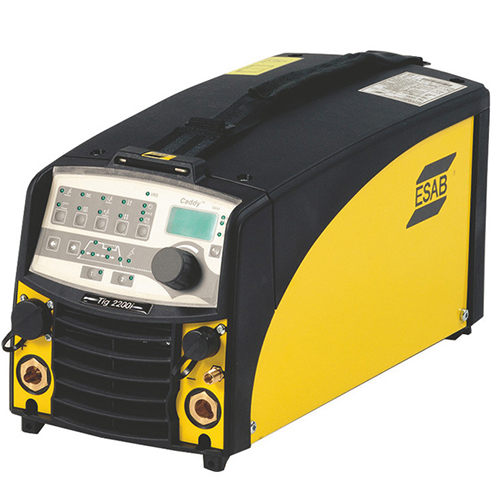

Esab CADDYTIG 2200i TA34 TIG Welding Machine, Micro Pulse functionality, 220 Amp, 220V, Single Phase, 9.2kg

Caddy®Tig 2200i
Portable solutions for professional welding

The Caddy®name has always been synonymous with robust and durable welding tools designed for professional welders. Introducing the fifth generation of portable welding equipment from ESAB the latest Caddy®machines have over 30 years of experience in inverter technology built-in.

Offering true portability

• Not only is Caddy® Tig 2200i AC/DC small and of low weight.
• Thanks to its intelligent, compact design it is easy to take along to different indoor and outdoor worksites and also to tuck away when not used, making it handy both in the workshop and on the move.
• Single-phase mains connection makes it easy to find an electricity supply for the unit, and it works equally well when powered by a portable generator. *
• Thanks to the built-in PFC circuit the machine can operate with extra long mains cables, over 100 m, giving the welder a very large working radius.

Impact-resistant design

• Composite materials in combination with smart design solutions provide a durable and impact-resistant machine, adapted to rough conditions.
• The control panel is recessed, which provides additional protection and durability.
• Caddy® Tig 2200i AC/DC has sturdy and impact-resistant cable connectors with OKC 50.

Improving the weld quality

• The TA34 version is designed to support and enhance the skills of the welder and enables excellent welding results to be achieved in a wide range of materials and thicknesses. The TA34 version comes with both adjustable slope up and slopes down.
• It also comes with MicroPulse functionality, making it easy to control the heat input and minimize the heat-affected zone.
• This is helpful, especially on thin sheets and high tense steels.
• Caddy® Tig 2200i provides true MMA capability with the same capacity and features as ESAB MMA machines of the same voltage range, including the features Hot start, arc force setting, Arc Plus II*, and additionally, polarity switch.
• To obtain full output, for use a 12 kva portable generator with automatic voltage regulation.
• Arc PlusII generates an intense yet smooth and stable arc that is easy to control.
• Smaller droplets are generated, the arc burns smoothly, and there is no need to pause at the edges when weaving.
• Arc Plus II offers even better welding characteristics, simplifies your work, and gives you better weld quality with less need for post-weld treatment.

Supporting the welder

• The machine has a true AC rating where the actual welding current is always equal to the set current.
• The control panel is easy to overview and has a digital display for accurate welding parameter setting, high control, and feedback.
• It is easy to understand and set, with or without gloves on.
• The TA34 version comes with two memories for pre-sets, enabling a quick and accurate return to pre-defined settings.
• Caddy® Tig 2200i AC/DC comes with a handy, ergonomic torch with a ball joint that decreases the stress on the welder ́s wrist and helps the welder access the material in confined spaces.
• It can also easily be (retro)-fitted with a water cooler.

Features

• Designed for quality TIG-welding in alloyed, non-alloyed, and stainless steel.
• Easy to use -all welding parameters presented in a clear layout.
• ESAB 2-program function –the ability to pre-program and change programs during welding.
• Pulsed TIG welding -increased control of heat input and the weld pool.
• MicroPulse –minimize heat-affected zone, especially on thin material
• ArcPlus™II-better welding characteristics simplify your work and give you better weld quality with less after treatment.
• True MMA welding characteristics -Hot start and Arc force setting
• Extra-long mains cable capability –gives the extra-large working radius

Applications

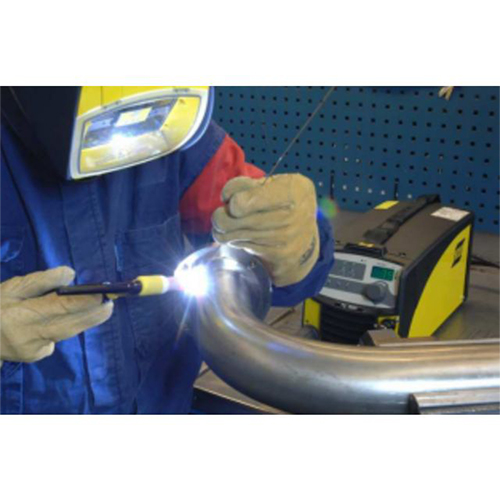

• Professional welding tool.
• In and outdoor installation, repair, and maintenance on-site.
• In and outdoor production, fabrication, and civil construction.
• Process industry.
