Esab

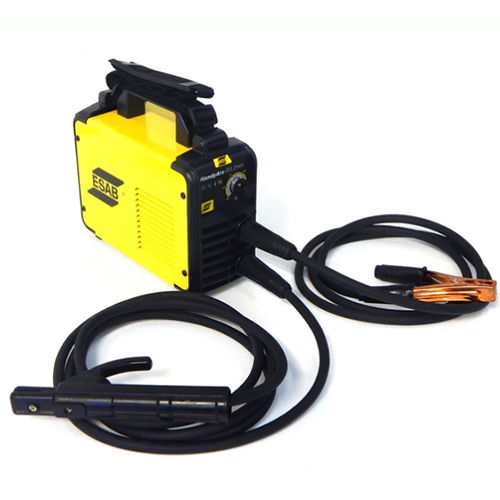

Esab HANDYARC 3.2mm ARC Welding Machine, Welds Electrodes Up To 3.25 mm, 160 Amp, 220V, Single Phase, 3.5kg

Esab
ARC Welding Machine
  • Excellent performance and arc stability on all stick electrode types (including E7018)
  • High power fan to cool down the equipment for all day job application
  • For all indoor or outdoor jobs
  • Ultra‐light and portable: only 3.3kg
  • Easy to use: adjust the welding parameter by selecting the stick electrode diameter
  • Availability: 1 In Stock
  • SKU: HANDYARC 3.2mm
  • 12 Months Warranty
728 510
(vat inclusive)
Save 30%
Tabby Installment Plan Split in 4 payments of 128 monthly without fees

Features

  • HandyArc's success has a new look, with an innovative and robust design that brings the visual identity and ESAB quality straight to the palm of your hand.
  • At only 3.5 kg, it features a main voltage of 220V.
  • The new HandyArc line brings a concept of ultra-portable machines that are ideal for blacksmiths and professionals who need to make minor repairs inside and outside the workshop.
  • Practicality with robustness – Featuring a reinforced handle for transportation, the compact model fits in your tool cabinet and in the trunk of your motorcycle.

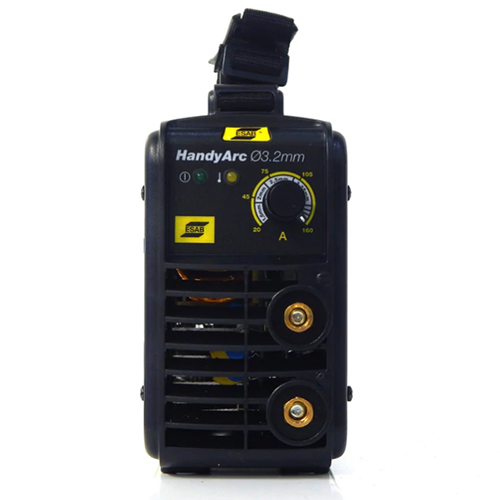

  • Simple and easy to use panel - Adjust the welding current according to the diameter of the electrode.
  • Economical as always - Excellent efficiency ensures the lowest energy consumption in the category.
  • Flawless weldability and easy arc opening – weld electrodes up to 3.25 mm, including 7018.
  • Productivity and security – More efficient and accurate turbo ventilation and an overheating sensor ensure that your machine works all day.
  • Extreme versatility - Weld all types of materials, including carbon steel, aluminum, chrome alloys, and nickel.
  • fall protection
  • Rain Protection
  • Impact Protection
  • Extreme environment welding

Industry

  • General Manufacturing
  • Hobbyist
  • Light Fabrication
  • Repair and Maintenance

Accessories

  • Shoulder strap.
  • Electrode holder.
  • 2 m return cable and clamp.
  • 3 m welding cable.



Primary Voltage 1 ph
220 VAC ± 10%, 1ph, 50/60 Hz
Maximum Output
160 A
Rated kVA
7.04 kVA
Recommended Generator
≥ 10.5 kVA
Open Circuit Voltage
75 V DC
MMA Welding Output
at 100% Duty Cycle
72 A
22.9 V
at 60% Duty Cycle
92 A
23.7 V
at 20% Duty Cycle
160 A
26.4 V
Current Range
20 – 160 A
Dimensions L x W x H
300 x 115 x 232 mm
Weight
3.7 kg
Operating Temperature
-10 to +40 °C
Enclosure Class
IP21S
Standards
IEC 60974-1
Weight
3.7
Khusheim Code
90-50-001
Khusheim ID
2627912
