Irwin

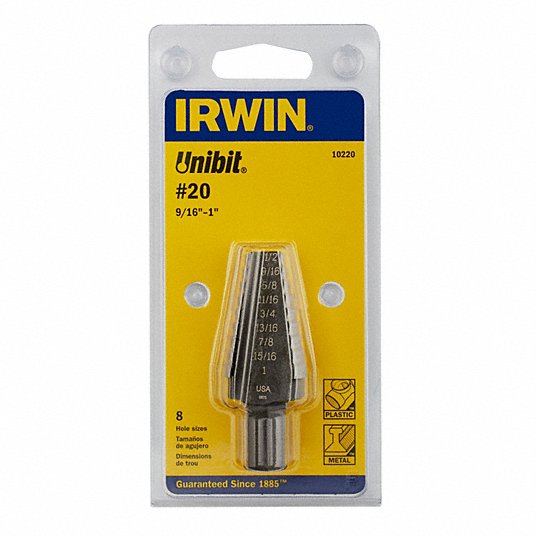

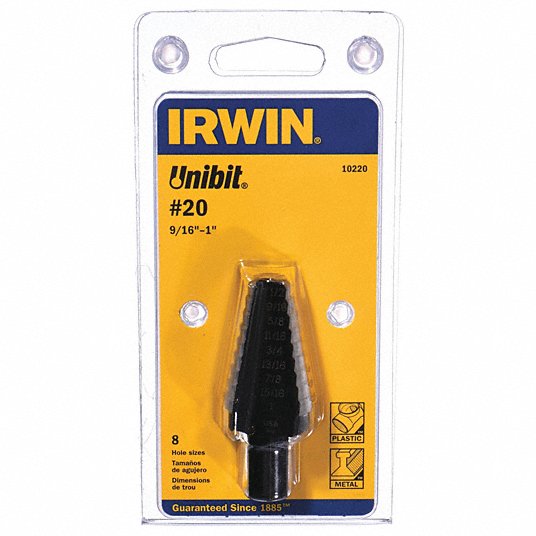

Irwin UNIBIT 20 Step Drill Bit, High Speed Steel, Black Oxide, 9/16 in to 1 in Size Range

Irwin
Step Drill Bit
  • Availability: Out of Stock
  • SKU: UNIBIT 20
133 (vat inclusive)
Tabby Installment Plan Split in 4 payments of 34 monthly without fees

Features

  • The shanks on these step drill bits have three flats that help prevent the bits from slipping in the drill chuck during drilling.

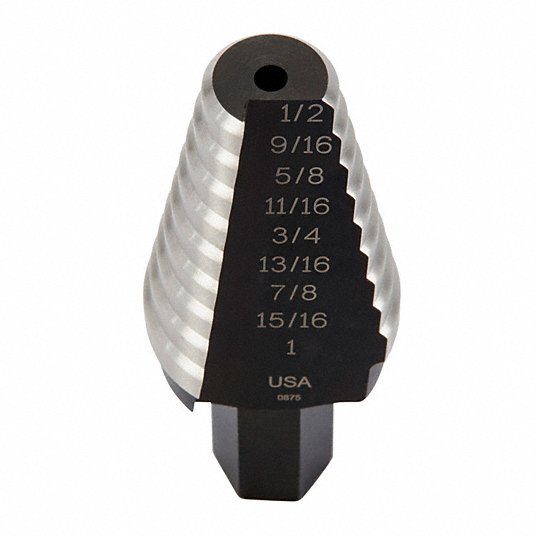

  • These cone-shaped bits have steps of increasing diameter marked along their cutting head.
  • As each bit is pushed into a piece of sheet metal or other thin material, each step on the bit widens the hole.
  • The bits also have a self-starting split point that prevents the bits from moving, or walking, when starting to drill, which eliminates the need for using a center drill to create a starter hole before drilling.
Number Hole Sizes
8
Minimum Hole Size
9/16 in
Maximum Hole Size
1 in
Material - Machining
High Speed Steel
Drill Bit Sizes Included
9/16 in, 5/8 in, 11/16 in, 3/4 in, 13/16 in, 7/8 in, 15/16 in, 1 in
Decimal Equivalent
0.5625, 0.625, 0.6875, 0.75, 0.8125, 0.875, 0.9375, 1
Measurement System
Fractional Inch
Step Increments
1/16 in
Shank Type - Machining
Straight with Three Flats
Shank Diameter
3/8 in
Overall Length
2 7/16 in
Maximum Drilling Depth
1/8 in
Finish - Machining
Black Oxide
Impact Rated
No
Primary Material Application
Aluminum, Brass, Copper, Laminate, Plastic, Steel, Wood
Series
UNIBIT
Sub Brand
Unibit
Weight
0.11
Khusheim Code
BD-4A947
Khusheim ID
999760
