Esab

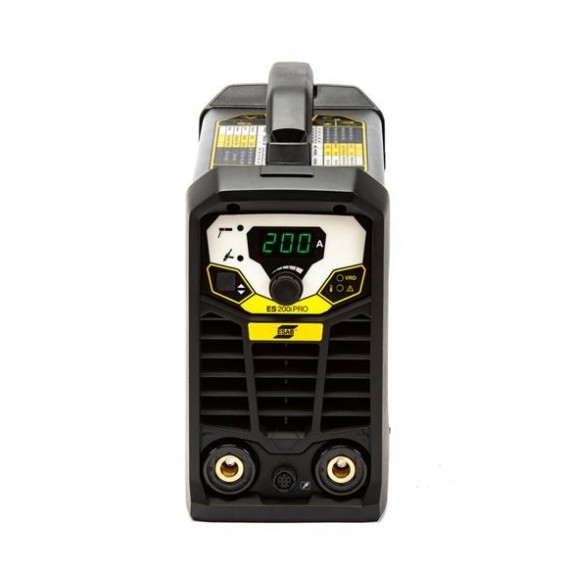

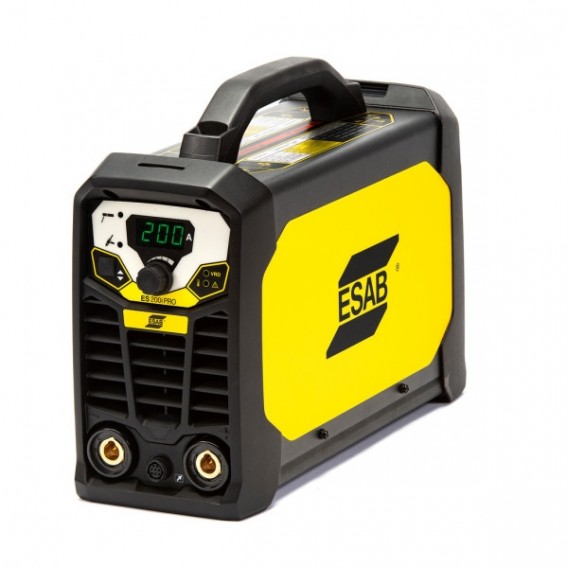

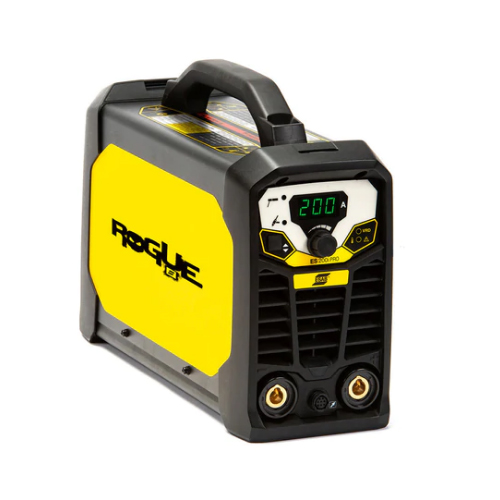

Esab ROGUE ES200i Pro ARC / TIG Welding Machine, Welds Electrodes Up To 4 mm, 200 Amperes, 110 & 220V, Single Phase, 8.4kg

Esab
ARC / TIG Welding Machine
  • Superior Arc characteristics – Smooth& Stable performance
  • Easy to Use – Set the welding current and weld with excellent results
  • PFC ensures a stable arc& resistant to power fluctuations even while working on long extension cables up to 100 m (PRO version only)
  • The Arc Force and Hot Start settings are adjustable and help the user find exactly the right arc for the job
  • The Rogue is a robust and durable power source for professional welders
  • Availability: Out of Stock
  • SKU: ROGUE ES200i Pro
  • 36 Months Warranty
1,889 (vat inclusive)
Tabby Installment Plan Split in 4 payments of 473 monthly without fees

Features

  • The Rogue is a robust and durable power source for professional welders.
  • 3 m mains cable and plug.
  • The machine provides state-of-the-art welding performance and reliability through the use of the latest high-performance power electronics and Digital control; ensuring a precise consistent arc.
  • The Rogue provides a smooth DC (Direct Current) welding power which allows you to weld a variety of metals, such as alloyed and non-alloyed steel, stainless steel, and cast iron.
  • The Arc Force and Hot Start settings are adjustable and help the user find exactly the right arc for the job.
  • Being digital the Micro-processor precisely controls all functions and provides Best-in-Class welding performance across the amperage range of the machine.
  • The Rogue can be used with electrodes up to 4.0mm Ø.
  • The Rogue can easily perform TIG -welding using a “Live TIG” start. Equip the power source with the optional TIG-Torch, which has a built-in gas valve and a regulator, and a bottle of gas and you are ready to weld mild steel or stainless steel, with or without filler material.
  • Superior Arc characteristics – Smooth, Stable performance.
  • Generator Compliant – Suitable for use with generators (recommended 7 kW).
  • Easy to Use – Set the welding current and weld with excellent results.
  • Practical Design - makes the power source easy to carry which enables use at almost any worksite.
  • Robust Design – IP23S Designed for Fabrication Shop or Site application.
  • PFC ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m (PRO version only).
  • Optional analog remote control (PRO version only)

Industry

  • Repair and Maintenance
  • Civil Construction
  • Agricultural Equipment
  • Industrial and General Fabrication

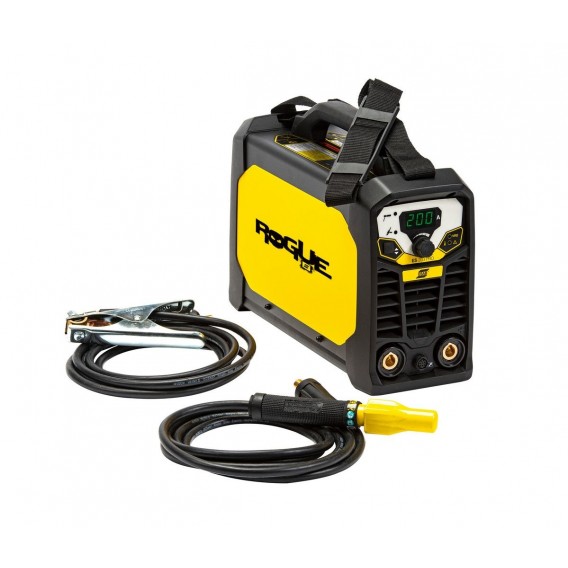

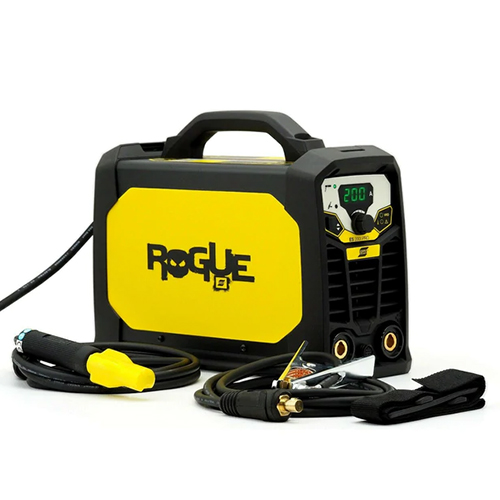

Accessories

  • Shoulder strap.
  • Electrode holder.
  • 3 m return cable and clamp.
Primary Voltage 1 ph
115/230 VAC ± 15%, 1ph, 50/60 Hz
Maximum Output
200 A
Rated kVA
6.9 kVA
Energy Save Mode
50 W
Open Circuit Voltage
78 V DC
MMA Welding Output
at 20% Duty Cycle
-
MMA Welding Output
at 25% Duty Cycle
200 A
28.0 V
MMA Welding Output
at 60% Duty Cycle
129 A
25.2 V
MMA Welding Output
at 100% Duty Cycle
100 A
24.0 V
TIG Welding Output
at 25% Duty Cycle
200 A
18.0 V
TIG Welding Output/ at 60% Duty Cycle
129 A
15.2 V
TIG Welding Output
at 100% Duty Cycle
100 A
14.0 V
Current Range
10 – 200 A
Operating Temperature
-10 to +40 °C
Enclosure Class
IP23S
Certification Mark
CE
Dimensions
403 x 153 x 264 mm
Weight
8.4
Khusheim Code
90-50-002
Khusheim ID
2627913
