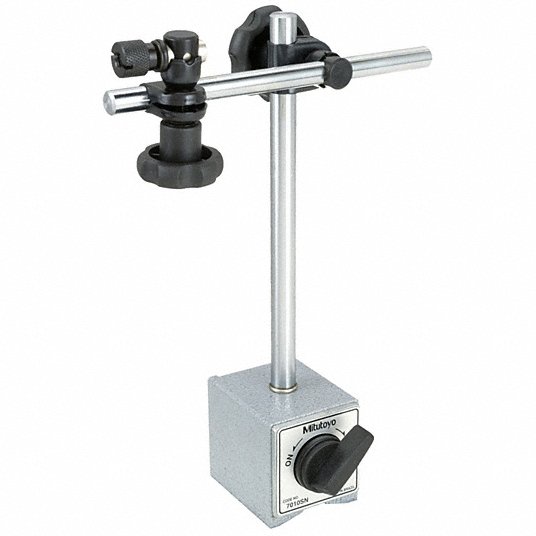

Mitutoyo 7010S Magnetic-Base Indicator Holder, Base Type Magnetic, Arm Type Rigid, Holding Power 600 N

Mitutoyo
Indicator Holder
  • Availability: Out of Stock
  • SKU: 7010S
459 322
(vat inclusive)
Save 30%
Tabby Installment Plan Split in 4 payments of 81 monthly without fees
Login or create account for stock alerts
DescriptionSpecificationReviews
Magnetic base indicator holders have a magnetic base that’s connected to an adjustable arm assembly used to mount and position indicators. - Also called mag bases, they are always-on or have an on/off knob or button to mount to machines, motors, benches, or other metal surfaces.
Arm Type
Rigid
Base Height
60 mm
Base Length
55 mm
Base Size
55 mm L x 50 mm W x 60 mm H
Base Type
Magnetic
Base Width
50 mm
Compatible Indicator Mounts
3/8 in, 6 mm, 8 mm
Fine Adjustment Position
Fine Adjust Top (FAT)
Holding Power
600 N
Maximum Reach
232 mm
Step Type
V Step
Working Length of Post/Lower Arm
55 mm
Working Length of Snug/Third Arm
177 mm
Working Length of Upper Arm
165 mm
Base Thread Size
M8 x 1.25
Includes
6 in Rod, Universal Clamp
Includes Snug
Yes
Magnet Type
On/Off Knob
Screw Type
Metal Knob
Centering Arm Shank Size
10 in
Centering Arm Shank Type
Straight
Weight
1.587572
Khusheim Code
BD-4LB12
Khusheim ID
1000500
