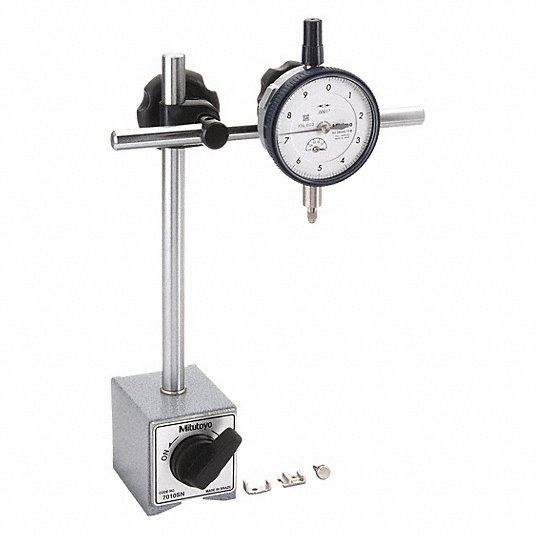

Mitutoyo 64PKA078 Item Dial Indicator & Mag Base Set, 20 in, Magnet Type On-Off Switch, Dimension Type Inch

Mitutoyo
Indicator
  • Availability: Out of Stock
  • SKU: 64PKA078
1,154 (vat inclusive)
Tabby Installment Plan Split in 4 payments of 289 monthly without fees
Login or create account for stock alerts
DescriptionSpecificationReviews
Dial indicator and base sets include a plunger-style or back plunger-style dial indicator and a holder with a magnetic base, ensuring compatibility.
Hand Tools
-Measuring Tools
Range
0 in to 1 in; 0 mm to 25.4 mm
Graduations
0.001 in
Accuracy
+/-0.0001 in (first 2.5 revolutions); +/-0.0002 in (overall)
Long Form Calibration Certificate
No
Dial Color
White
Dial Reading
/0-100
Dimension Type
Inch
Included Base manufacturer Model No
7010S
Included Certification
Certificate of Inspection
Included Indicator and Base
2804S-10, 7010S
Included Indicator Manufacturer Model No
2804S-10
Indicator Style
Plunger
Maximum Measurement - Inch
1 In
Maximum Measurement - mm
25.4 mm
Minimum Measurement - Inch
0 in
Minimum Measurement - mm
0 mm
Operation Type
Mechanical
Reading
Continuous
Stem Thread Size
#4-48 UNF
Test Indicator Style
Vertical
AGD Number
AGD 2
Arm Type
Post and Arm
Back Type
Lug
Base Height
232 mm
Base Length
55 mm
Base Size
55 mm L X 20 W X 232 mm H
Base Type
Magnetic
Base Width
20 in
Case Type
No case included
Compatible Indicator Mounts
lug back, stem
Dial Size
107 mm
Holding Power
600 N
ncludes Snug
Yes
Magnet Type
On-Off Switch
Standards
ISO, ISO
IEC Guide 98-3, ISO 14253-2, JIS B 0641-1
Compatible SPC Cable
Standard, Series 2
Compatible Wireless Transmitter
This is not an electronic indicator so this attribute does not apply
Resolution
0.00005 in
0.001 mm
Weight
1.8824068
Khusheim Code
BD-5C708
Khusheim ID
1003318
