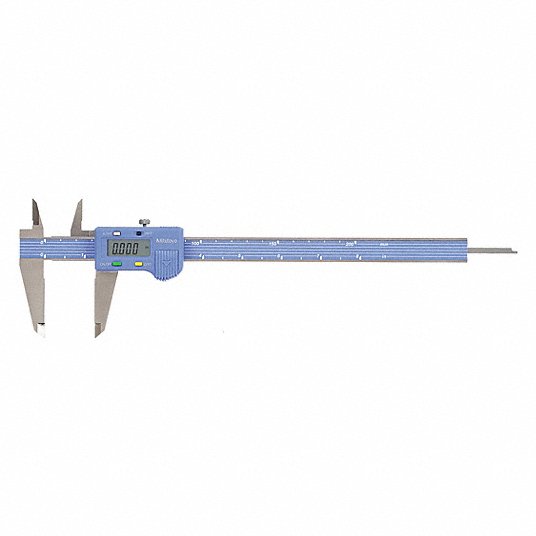

Mitutoyo 700-123-10 4-Way DIY Digital Caliper: 0 in to 8 in/0 to 200 mm Range, ±0.005 in/±0.20 mm Accuracy

Mitutoyo
Digital Caliper
  • Steel construction for protection of caliper components+
  • Digital single-value readout LCD display for readability
  • Position memory for retaining measurements
  • Function control buttons on the face for ease of use
  • Availability: Out of Stock
  • SKU: 700-123-10
855 599
(vat inclusive)
Save 30%
Tabby Installment Plan Split in 4 payments of 150 monthly without fees
Login or create account for stock alerts
DescriptionSpecificationReviews

MITUTOYO Digital Caliper 700-123-10 Features:

Mitutoyo is an innovative Digimatic Caliper that is economically priced to allow everyone to benefit from the advantages of modern digital gauges. Large LCD digits ensure error free reading in either inch or mm mode. Additionally, the zero point can be set anywhere to allow quick comparison measurements.

MITUTOYO Digital Caliper 700-123-10 Features:

  • Digital calipers have adjustable jaws that slide along a beam to measure between two opposite sides of a tool or part.
  • They are easier to read and offer higher precision than dial or vernier calipers.
  • These calipers do not have SPC output capability and are used when a direct reading is needed or for recording measurements by hand.
  • Jaws and rule proportioned for DIY use.
  • Hardened stainless steel throughout for longer life and corrosion resistance.
  • The LCD screen allows error-free readout of measurements.
Hand Tools
-Measuring Tools
-Caliper
Range
0 inch to 8 inch; 0 to 200 mm
Resolution
0.0005 inch/0.01 mm
Accuracy
±0.005 inch; ±0.20 mm
IP Rating
Not Rated
SPC Output
No
Long Form Calibration Certificate
No
Absolute Positioning
Yes
Caliper Material
Stainless Steel
Dimension Type
Inch/Metric
Coolant Resistant
No
Dust Resistant
Yes
Included Certification
Certificate of Inspection
Jaw Actuation Type
Slide
Jaw Depth
1-37/64 inch
Jaw Material
Stainless Steel
Minimum Measurement - Fractional Inch
0 inch
Maximum Measurement - Inch
8 inch
Maximum Measurement - mm
200 mm
Measurements
4-Way
Measures Depth
Yes
Measures Inside Dimension
Yes
Measures Outside Dimension
Yes
Measures Step
Yes
Minimum Measurement - Inch
0 inch
Minimum Measurement - mm
0 mm
Display Type
LCD
Battery Size
SR44
Water Resistant
No
Depth Rod Shape
Rectangular
Functions
Zero, On/Off, Alarm
Low Voltage, Counting Value Composition Error
Includes Battery
Yes
Jaw Depth - Upper Jaw
21/32 inch
Jaw Shape
Standard
Linear Encoder Type
Electrostatic Capacitance
Repeatability
0.0005 inch/0.01 mm
With Locking Nut
Yes
Weight
0.3
Khusheim Code
4CGL9
Khusheim ID
1810688
