Chicago Pneumatic

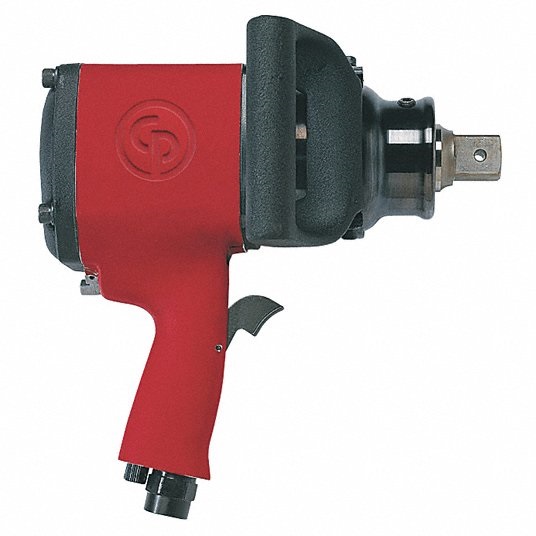

Chicago Pneumatic CP796 Air Powered, Impact Wrench, 90 psi, 1,400 ft-lb Fastening Torque, Clearance offer without warranty 11C957

Chicago Pneumatic
Impact Wrench
  • Availability: Out of Stock
  • SKU: CP796
  • 12 Months Warranty
Compact pistol-grip air-powered impact wrenches (sometimes called stubby wrenches) have a shorter front-to-back length than standard pistol-grip impact wrenches, allowing for access to tight spaces. - They have higher torque and larger drive sizes than inline impact wrenches, but often have lower torque than full-size tools. - The pistol grip has a trigger that is pressed to activate the wrench. - Pistol grips provide ergonomic handling when working on vertical surfaces from the user's waist to chest, horizontal surfaces at mid-thigh or lower, and horizontal surfaces directly overhead.
Air Consumption
52 cfm
Air Inlet
1/2 in NPT
Air Pressure
90 psi
Max. Air Pressure
90 psi
Min. Air Pressure
90 psi
Min. Hose Size
1/2 in
Exhaust Location
Bottom
Duty Rating
Industrial Duty
Breakaway Torque
2,000 ft-lb
Fastening Torque
1,400 ft-lb
Free Speed
4,100 RPM
Impact Rated
Yes
Impact Sound Level
112 dB
Impacts per Minute
900
Number of Speed Settings
3
Power to Weight Ratio
100 ft-lb/lb
Max. Bolt Capacity
1 3/8 in
Drive Size
1 in Square
Drive Type
Standard
Retainer Type
Through Hole
Clutch Style
Double Rocking Dog
Tool Style
Compact
Vibration Level
18.2 m/sq sec
Overall Length
9 1/2 in
Handle Material
Aluminum
Housing Material
Steel
Handle Type
Pistol Grip
Tool Brand
Chicago Pneumatic
Features
Industrial Quality And Dependability, Operator Comfort, Powerful Motor And Extremely Durable Clutch
Includes
Side Handle
Tool Weight
20.0 lb
Standards
EN ISO 11148-6
2013, ISO-28927-2
Weight
9.07
Khusheim Code
BD-11C957
Khusheim ID
975549
