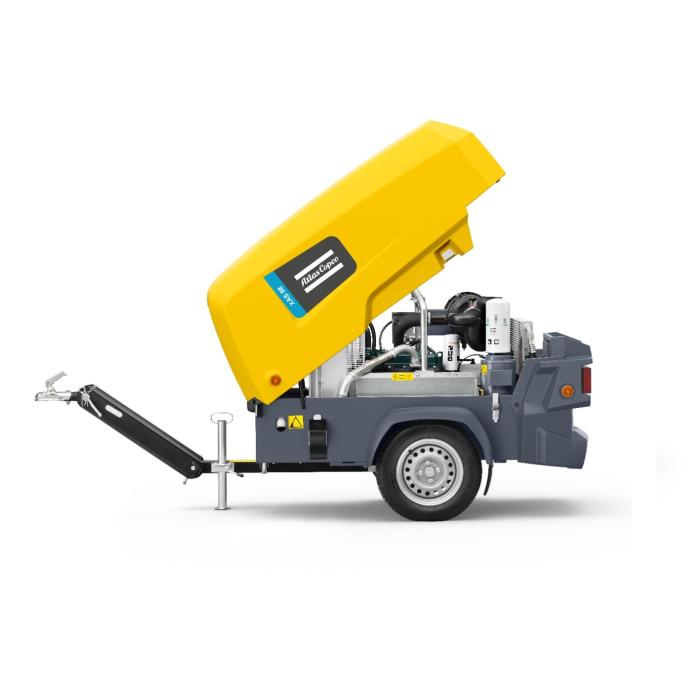

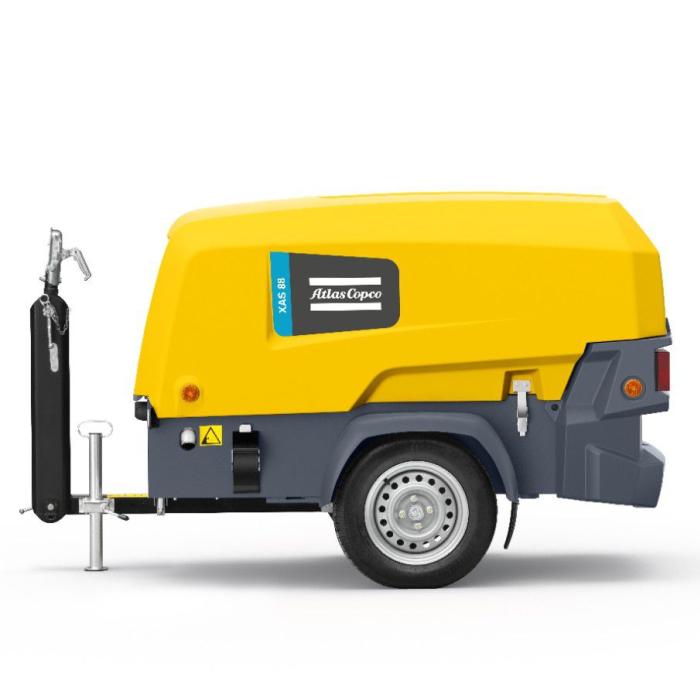

Atlas Copco XAS 88 Diesel Portable Compressor 7 bar, 175 CFM

Atlas Copco
Diesel Portable Compressor
  • Availability: Out of Stock
  • SKU: XAS 88
Atlas Copco’s fully implemented Quality Management and Environmental Management systems in the design and manufacturing of these units fulfill the requirements of ISO 9001 and ISO 14001 & OHSAS 18001. The range has also been given the certificate tested according to ISO 1217:2009-annex D. Options: - Adjustable tow bar with brakes - Adjustable tow bar without brakes - Fixed tow bar with brakes - Fixed tow bar without brakes - DoT approved undercarriage - Support mounted - Support leg - Jockey wheel - Road signalization + wheel chocks - Towing eye (DIN, NATO, AC, BNA, ITA ,GB , Ball coupling) - Loose ball coupling - Special colors - Cold start - Toolbox - Aftercooler + water separator - Aftercooler + water separator + heater - Aftercooler by-pass - Additional fuel filter - Safety cartridge - Lubricator - Non-return valve - Tilt protection - Air filter vacuum system - Hose reel - 4th O/L valve (simple attachment)
Performance
Working pressure bar (g)
7
psi (g)
100
Free air delivery CFM
175
m3 /min
5,0
Output power kVA
-
Noise sound pressure level (Lp)
70
Noise sound power level (Lw)
98
Max. ambient temperature at sea level °C
50
Min. starting temperature °C
-10
Min. starting temperature (cold start aid)
-20
Engine
Engine brand
Kubota
Engine model
V 1505 T
Number of cylinders
4
Power output @ normal shaft speed kW
33
Full load RPM rpm
3000
Unload RPM rpm
1850
Engine oil capacity l
5,5
Compressor oil capacity l
7,7
Fuel tank capacity
60
Length mm
1940
Width mm
1180
Height mm
1150
Weight box
650
Transport dimensions
Length mm
2290
Width mm
1350
Height mm
1400
Weight portable kg
< 750
Weight
750
Khusheim Code
50-02-002
Khusheim ID
2583956
