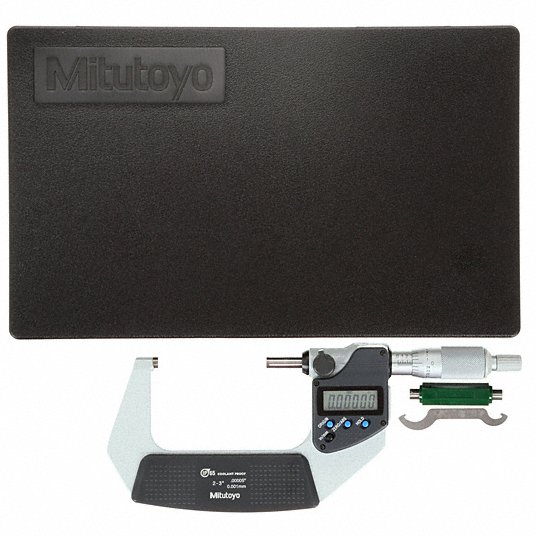

Mitutoyo 293-346-30 IP65 Digital Outside Micrometer, Range 2 in to 3 in, 50.8 to 76.2 mm, IP Rating IP654CGF9

Mitutoyo
Digital Outside Micrometer
  • Availability: 1 In Stock
  • SKU: 293-346-30
963 675
(vat inclusive)
Save 30%
Tabby Installment Plan Split in 4 payments of 169 monthly without fees
DescriptionSpecificationReviews
These IP65, IP66, and IP67 digital outside micrometers are used for measuring the outside dimensions of wires, spheres, gauge blocks, and other parts in harsh environments. - IP65+ micrometers offer protection against solids and dust particles. - IP65 micrometers protect against low-pressure liquid jets, while IP66 micrometers offer protection from high-pressure liquid jets. - IP67 micrometers provide protection against short-term immersion in liquids including water, coolants, and other metalworking fluids.
Hand Tools
-Measuring Tools
Range
2 in to 3 in, 50.8 to 76.2 mm
Resolution
0.00005 in/0.001 mm
Accuracy
+/-0.00005 in
IP Rating
IP65
SPC Output
Yes
Data Output Type
Cable
Coolant Resistant
Yes
Dimension Type
Inch/Metric
Included Certification
Certificate of Inspection
Operation Type
Digital
Thimble Type
Ratchet
Anvil Material
Carbide
Anvil Shape
Flat
Battery Size
SR44
Case Included
Yes
Case Type
Plastic
Display Type
LCD
Functions
Automatic Power On/Off, Data Hold, Origin-Set, Zero-Setting
Includes
Fitted Plastic Case
Includes Battery
Yes
Maximum Measurement - Inch
3 in
Maximum Measurement - mm
76.2 mm
Minimum Measurement - Inch
2 in
Minimum Measurement - mm
50.8 mm
Rotating Spindle (Yes/No)
Yes
Spindle Diameter
6.35 mm
Spindle Material
Carbide Tipped
Spindle Shape
Flat
Weight
0.9
Khusheim Code
BD-4CGF9
Khusheim ID
999865
